Minglight PKB-XX0W277-50K-A N-P Shoebox Light
Minglight PKB-XX0W277-50K-A N-P Shoebox Light
Minglight PKB-XX0W277-50K-A N-P Shoebox Light
Minglight PKB-XX0W277-50K-A N-P Shoebox Light
MingLight

Minglight PKB-XX0W277-50K-A N-P Shoebox Light

$133.35

75W-300W
High performance LED fixture 130Lm/W

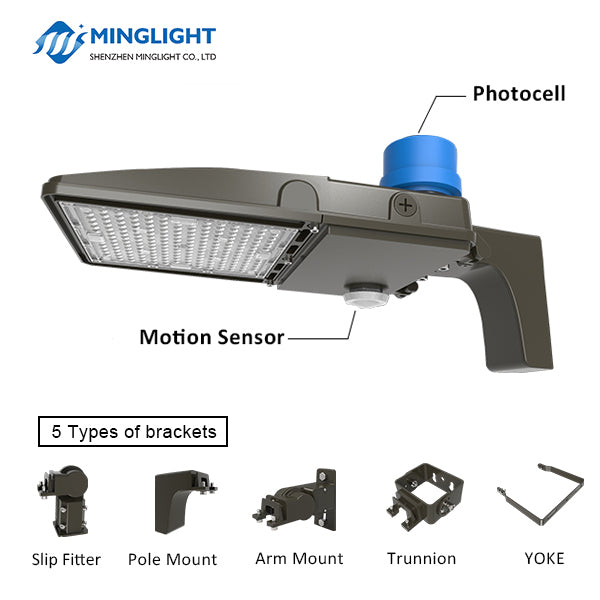

5 multiple mounting options
3 different light distribution
Replcing 300W to 1000W metal halide
DLC ETL+Philips LED+IP65+5 years warranty

Specification


 Product LED Parking Lot Light   LED Parking Lot Light   LED Parking Lot Light   LED Parking Lot Light   LED Parking Lot Light  LED Parking Lot Light
Brand Name  Minglight  Minglight    Minglight  Minglight   Minglight   Minglight
 Model No ML-PLB-75W  ML-PLB-100W   ML-PLB-150W   ML-PLB-200W  ML-PLB-240W  ML-PLB-300W
 Wattage  75W   100W    150W   200W    240W   300W
Input Voltage  120-277Vac or
220-480Vac 		 120-277Vac or
220-480Vac  		 120-277Vac or
220-480Vac  		 120-277Vac or
220-480Vac  		 120-277Vac or
220-480Vac 		 120-277Vac or
220-480Vac
Lumen Efficiency  130LM/W / 160LM/W  130LM/W / 160LM/W   130LM/W / 160LM/W   130LM/W / 160LM/W  130LM/W / 160LM/W  130LM/W / 160LM/W
Power Factor (PF)  >0.95  >0.95   >0.95  >0.95   >0.95   >0.95
Power Efficiency  >90%  >90%   >90%   >90%  >90%   >90%
Lumen Output(+/-5%)  9750LM / 12375LM  13000LM / 16500LM 19500LM / 24750LM  26000LM / 33000LM  31200LM / 39600LM   39000LM / 49500LM
CRI  >70  >70   >70  >70  >70   >70
CCT   3000K 4000K
5000K 6000K		   3000K 4000K
5000K 6000K		  3000K 4000K
5000K 6000K		  3000K 4000K
5000K 6000K		  3000K 4000K
5000K 6000K		  3000K 4000K
5000K 6000K
Rating  IP65 IK07 IP65 IK07 IP65 IK07 IP65 IK07 IP65 IK07 IP65 IK07
Driver  Inventronics  Inventronics  Inventronics  Inventronics Inventronics Inventronics
Lighting Source  Lumileds   Lumileds  Lumileds   Lumileds  Lumileds  Lumileds
Working Temperature  (-)25°C-(+)55 °C (-)25°C-(+)55 °C  (-)25°C-(+)55 °C   (-)25°C-(+)55 °C  (-)25°C-(+)55 °C (-)25°C-(+)55 °C
Lamp Shell Color  Brown Brown Brown Brown Brown Brown

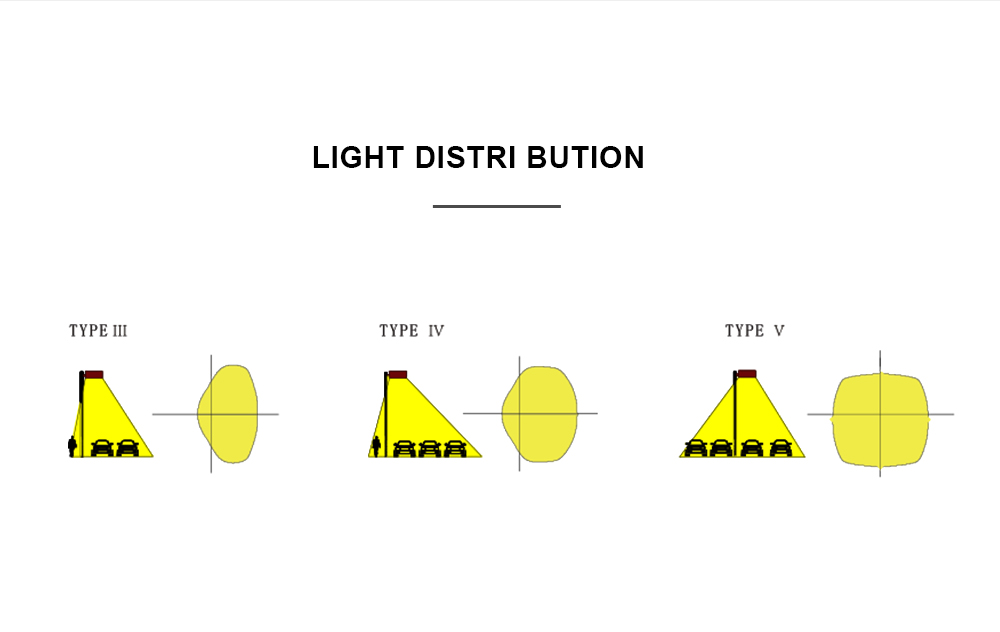

Beam Angle type 3/4/5  type 3/4/5    type 3/4/5  type 3/4/5   type 3/4/5  type 3/4/5
 Working Lifetime  50000hrs  50000hrs  50000hrs  50000hrs  50000hrs  50000hrs
Certification  DLC ETL CE ROHS   DLC ETL CE ROHS  DLC ETL CE ROHS   DLC ETL CE ROHS   DLC ETL CE ROHS  DLC ETL CE ROHS
Warranty   5 years  5 years   5 years    5 years  5 years   5 years



Packing


 Model No Wattage Piece/CTN Carton Size(cm) GW(kg)
Shoebox with Slip Fitter 75W/100W/150W  1 PC/CTN 59.5*12.5*34.5  4.7/4.8/4.9
Shoebox with Slip Fitter  200W  1 PC/CTN  62.5*12.5*36  5.7
Shoebox with Slip Fitter   240W/300W 1 PC/CTN 69.5*14*42.5   7.2/7.6

Shoebox with Square Arm 75W/100W/150W   1 PC/CTN  64*12.5*34.5  4.4/4.5/4.6
 Shoebox with Square Arm  200W   1 PC/CTN  67*12.5*36  5.4
Shoebox with Square Arm  240W/300W   1 PC/CTN 74*14*42.5  6.9/7.3

 Shoebox with Round Arm  75W/100W/150W    1 PC/CTN 64*12.5*34.5   4.9/5.0/5.1
Shoebox with Round Arm   200W   1 PC/CTN  67*12.5*36   6.0
Shoebox with Round Arm   240W/300W   1 PC/CTN  74*14*42.5  7.4/7.8

Shoebox with Trunnion 75W/100W/150W     1 PC/CTN 59.5*12.5*34.5   4.6/4.7/4.8
Shoebox with Trunnion   200W     1 PC/CTN  62.5*12.5*36  5.4
Shoebox with Trunnion  240W/300W   1 PC/CTN 69.5*14*42.5   7.0/7.4

Shoebox with Yoke 75W/100W/150W      1 PC/CTN 47.5*12.5*34.5  4.9/5.0/5.1
Shoebox with Yoke   200W      1 PC/CTN 50.5*12.5*36 6.0
Shoebox with Yoke   240W/300W    1 PC/CTN  58.5*14*42.5  7.8/8.2
